Slim BOX PC

PAB011

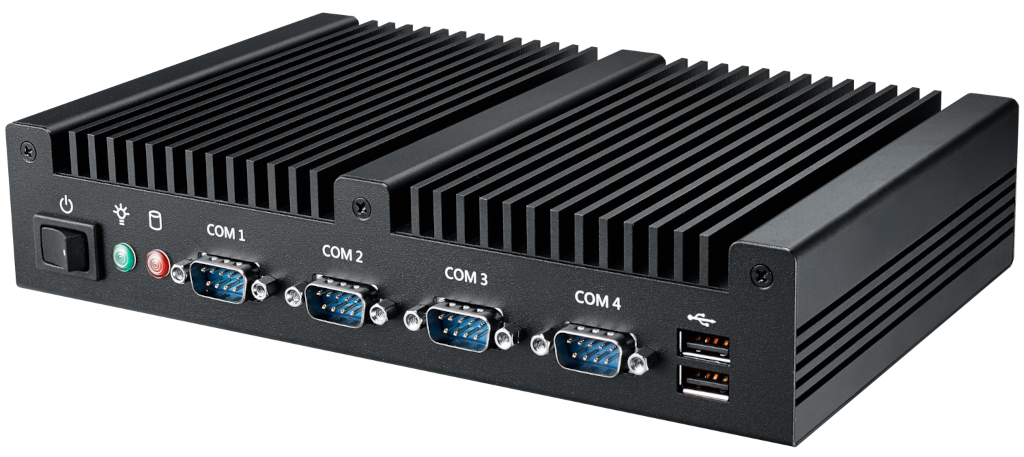

Industrial Box PC available with Intel Celeron 4305UE, Intel Core i3-8145UE and Core i5-8365UE CPU, for desktop or internal electrical board , totally fanless and low power, able to offer high performances both calculation and graphic. The wide range 12-24 VDC power input, 2xRJ45 LAN ports, 1x HDMI and 1x DP ports, as well as several USB and serial ports, make the PAB011 the perfect solution for industrial applications and more

Choose the size and configure:

Tech Specs

Documents

CPU	Celeron 4305UE, i38145UE, i5-8365UE
Memory:	up to 64 GB
Storage:	M.2 SATA SSD
Power input:	12-24VDC
Video:	1x HDMI, 1x DP
Ethernet:	2x RJ45 GigaLan
USB	4x USB3.1, 4x USB2.0
Serial ports:	2x RS232, 2x RS232/422/485
Mountig type:	internal electric board, desktop
Fanless

Datasheets and manuals

Datasheet	Operating system
PAB011-FQ-Cel. i3, i5 Whiskey Lake	Windows 10 64 bit
PAB011-FS-i5 Whiskey Lake	Windows 10 64 bit
