Slim BOX PC

PAB107

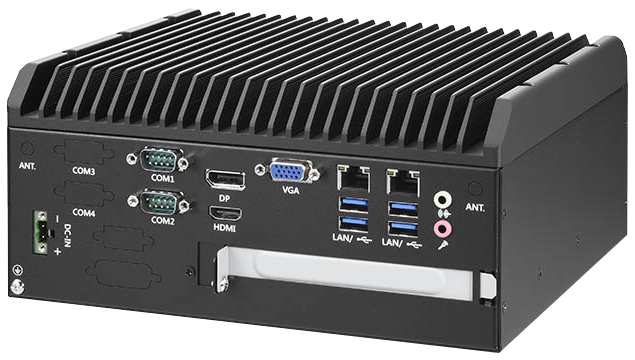

Industrial Box PC available with Intel Core i3-6100TE, i5-6500TE or i7-7700T CPU, for desktop or internal electrical board, totally fanless and low power, able to offer high performances both calculation and graphic. The wide range 12-24 VDC power input, 2xRJ45 LAN ports, 1c VGA, 1x DP and 1x HDMI ports, as well as several USB and serial ports and 1x PCI-Express slot, make the PAB107 the perfect solution for industrial applications and more

Choose the size and configure:

Tech Specs

Documents

CPU	I3-6100TE, i5-6500TE, i7-7700T
Memory:	up to 32 GB
Storage:	SSD
Power input:	12-24VD
Video:	1x VGA, 1x DP, 1xHDMI
Ethernet:	2x RJ45 GigaLan
USB	4x USB3.0, 4x USB2.0
Serial ports:	1x RS232, 1x RS232/422/485
Expansion slot:	1x PCI-Ex
Mountig type:	internal electric board, desktop
Fanless

Datasheets and manuals

Datasheet	Operating system
PAB107-EP- i3, i5, i7 SkyLake/KabyLake	Windows 10 32/64 bit

Personalizzazione grafica frontale a misura di utente

Configura rapidamente il prodotto perfetto per le tue esigenze grazie al nostro tool di configurazione online.

Richiedi informazioni
